Smart Tweezers® ST5-S LCR Tweezers

Smart TweezersSKU: ST-5S

PRICE:
Sale price₹23,600.00

(Inclusive of GST)

  Save Extra with offers
Free Shipping: On Prepaid Cart Value of ₹1499/- and above.
Business Purchases: Get GST Invoice and Save up to 28%.


  • GST Tax Invoice - Available, Provide GST Number at Checkout to Get Tax Input
  • Sold By - Otovon Electronics Private Limited
  • Address - 42A, Upper Ground Floor Back Side, KH No. 40/15 Abchal Nagar, Nilothi Extension, Delhi, IN - 110041
  • E-mail - support@otovon.in
  • Phone - 9315187923
  • WhatsApp - Click Here

Description

Smart Tweezers® ST5-S LCR Tweezers

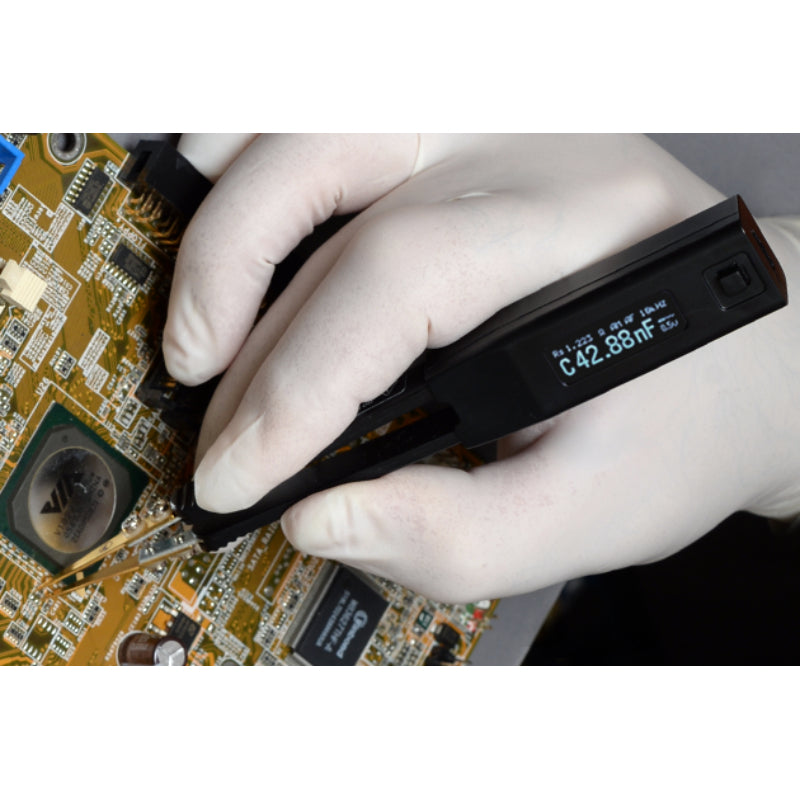

LCR Meter and Component Identifier in a Pair of Tweezers

An Efficient and Convenient Way to Test SMD Components

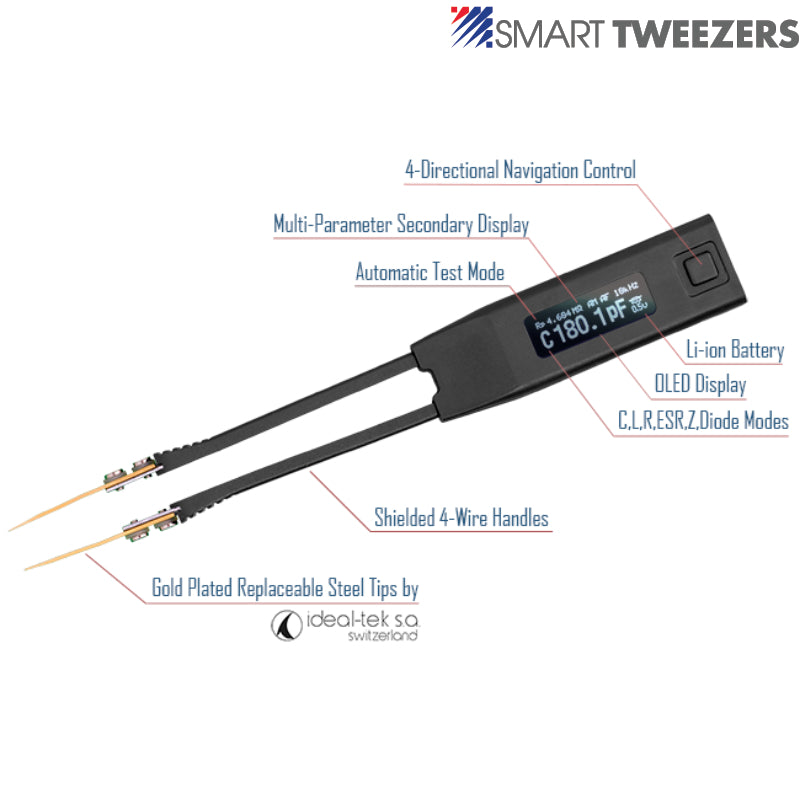

• Built-in high-precision LCR probe
• Convenient one-hand operation
• Ideal for Surface Mount Devices
• Automated component identification
• Automated test range selection

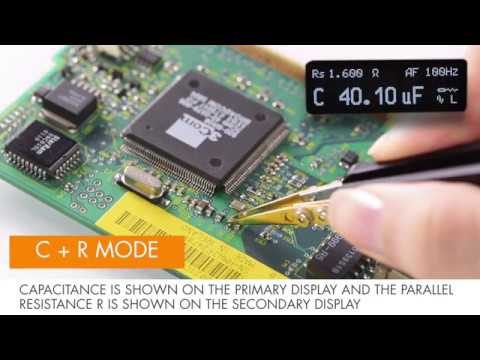

• Manual C, R, L, Z and ESR modes
• Adjustable test signal levels
• Extensive in-circuit test capabilities
• Diode Polarity/Short Testing

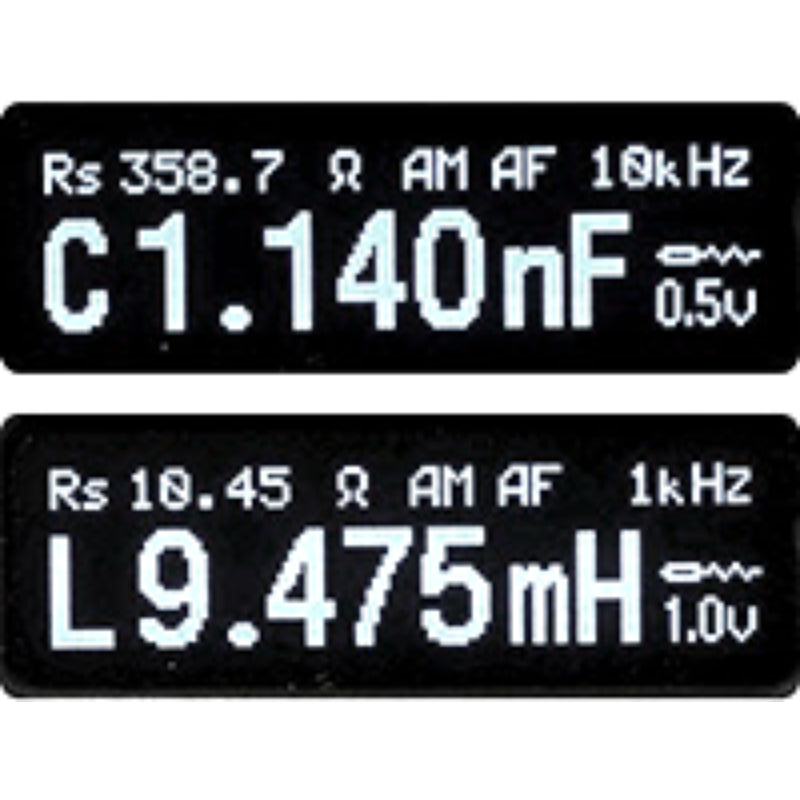

• Secondary D, Q and ESR parameters
• Swiss-made precise test leads
• Built-in Li-Ion battery


Technical Specifications
AC test mode Test frequency 1 kHz, 10 kHz, 120 Hz, 100 Hz
Test frequency accuracy 50 PPM (0.005%), 0.3% for 120Hz
Test signal level 0.41/0.91 +/- 10% Vrms Sine wave
Source impedance 100Ω +/- 1%
Measurement Ranges and Precision
Resistance R

0.05 Ω to 9.9 MΩ

Precision: up to 0.2% (see datasheet for details)

Capacitance C

0.5 pF to 9.99 µF

Precision: up to 0.2% (see datasheet for details)

Inductance L

0.5 uH to 999 mH

Precision: up to 0.5% (see datasheet for details)

Quality factor Q 0.001 to 1000
Dissipation factor D 0.001 to 1000
Physical Specifications
Size 15.0 x 1.8 x 1.5 cm (5.9 x 0.7 x 0.6 in)
Weight 29 grams (0.06 lb)
Operating temperature 0°C to 50°C
Battery Type 3.7V LiPO rechargeable 180mAH
Battery Life (continuous) 20 hours, 3 hours charging cycle
Electromagnetic Compatibility (EMC): FCC 15 part B, SE
Size 14.0 x 2.5 x 3.0 cm (3.94 x 0.9 x 1.5 in)
Country of Origin Canada
Warranty 12 Months
Download Technical Datasheet
